1967-1972 Chevy Truck RTX Gauge Kit Dakota Digital

Product Description

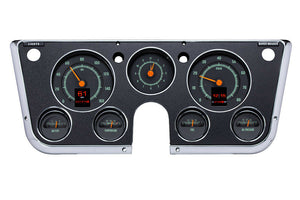

1967 to 1972 Chevrolet Truck Dakota Digital Retro tech Gauge Kit

Part # RTX-67C-PU-X

The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed. When opening the vehicle's door, the vintage-looking rolling odometer provides a stock appearance.Turning on the ignition, the TFT message center can be fully configured to display just about any piece of information needed, from the complementary home screen to the user-configurable data screens. Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation.  Bluetooth integration, GPS technology and RGB backlighting with a full color TFT screen provide the technology that you want. The RTX Series offers the timeless look of yesterday, with the features and functionality of today!

Stock, but not! With a quick glance, heck even a longing stare, you’d think these are original equipment, but when the key turns all bets are off. This is as close to stock as you can get while enjoying color-changing LED backlighting, dual TFT message centers and of course late-model drivetrain compatibility. The analog clock in the center position seals the deal; RTX is what you’ve been waiting for! Requires stock or reproduction seven-hole bezel for installation, available separately.

The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.

Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raises the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed, or just leave the vintage-looking tumbler odometer on the screen for a totally stock appearance. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible. Click the tabs below for a more in-depth look at the RTX series!

*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.


Specification:


Analog Gauges


Speedometer 0 -160 MPH (optional metric version 0- 255 km/h)

Tachometer 0- 8,000 RPM

Oil Pressure 0- 80 psi

Water Temperature 100- 260ºF (optional metric version 40- 120ºC)

Fuel Level E, 1/4, 1/2, 3/4, F

Voltmeter 9- 17 VDC

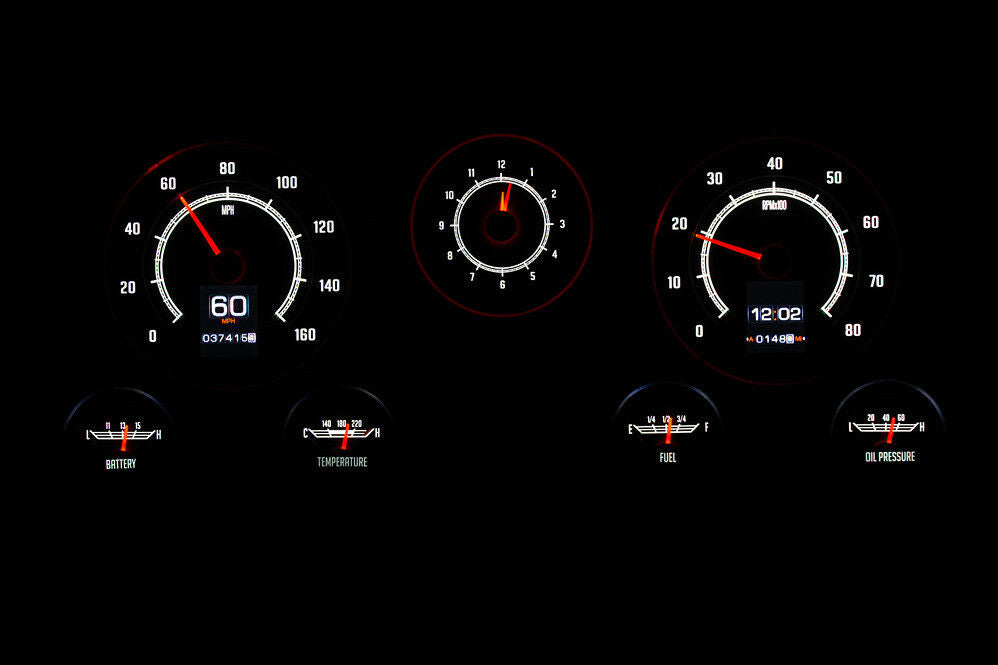

Lighting Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

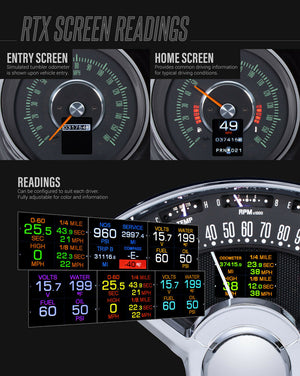

Digital Message Centers


Standard Displays
Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0- 9,999.9)
Clock (12 hour)

Performance Meters
0- 60 MPH Timer (0- 100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges
Speedometer (0- 255 MPH/kmh)
Tachometer (0- 9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
Voltmeter (9- 17 VDC)
Fuel Level (0-99% full)

Lighting
Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/ complete the look at night.

Built-in Indicators


Indicators
Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

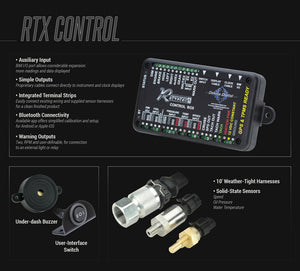

Included Sensors




Water Temperature 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure 1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/ Generator Replaces GM style speedometer cables with a 10 ft harness.
   (Tremec and Ford style adaptors available on request.)

Bushings Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration


Pushbutton Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.



$ 1,610.20
